1. 전압, 전류 : 0.1A12V DC (Resistance)
2. 접촉사항 :70mΩ
3. 수명 : 10.000 Cycles
4.Micro-Current detector switch shaped like micro swith


1. 접점 : Mechanical Contact
2. 전압, 전류 : DC12V 50mA
3. 작동거리 : 0.25±0.1m/m
4. 작동력 : 160 ±30gf
5. 접촉사항 : 100mΩ Max
6. 수명 : 100.000 Cycles Min
MODEL L
TP1141 4.3
TP1131A 5.0


1. 전압, 전류 : DC15V 20mA
2. 작동거리 : 0.25±0.2m/m
3. 접촉사항 : 500mΩ Max
4. 수명 : 100.000 Cycles Min
MODEL STEM OPEWATING FORC(gf)
TP1145 BLACK 160±30gf
TP1145W GRAY 260±30gf


1. 전압, 전류 : DC12V  50mA
2. 작동거리 : 0.25±0.1m/m
3. 접촉사항 :100mΩMax
4. 수명 :   50.000 Cycles (180gf)
  30,000 Cycles(250gf)
MODEL STEM L OPEWATING
FORC(gf)
TP1146 Black 4.3 180±30gf
TP1147 White 5 180±30gf
TP1146W Blue 4.3 250±50gf
TP1147W Blue 5 250±50gf

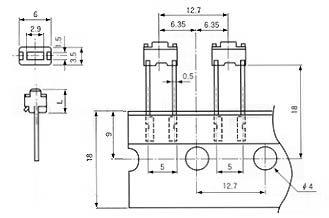

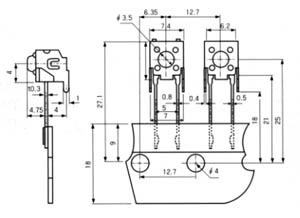

TAPING PACKAGING FOR AUTO-INSERTION
MODEL QUANTITY (units)
TP1141 1,000
TP1145 700
TP1146 1,500
